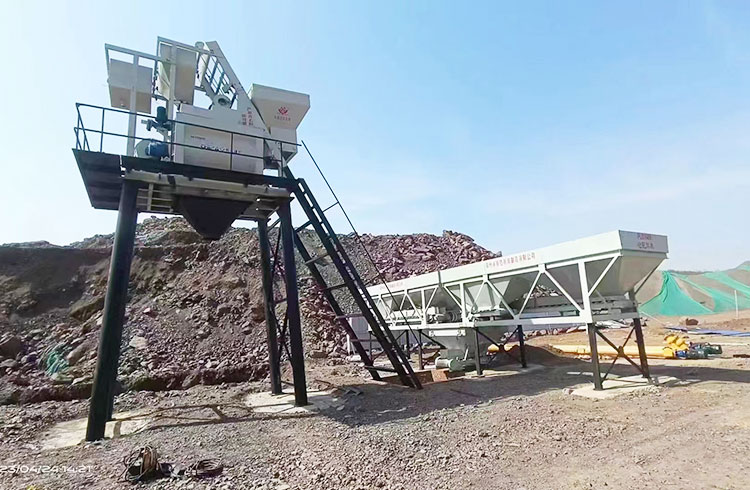

CHAND's 25m³/h concrete batching plant is one of the best-selling plant. It is very suitable for small construction sites, highways, bridges, power stations, dam construction projects and other projects.
25m³/h concrete batching plant has the advantages of low investment capital, small site occupation, few equipment required for operation, easy equipment maintenance and convenient operation.
This machine also has modular design, easy to install and disassemble,and the quantity of cement silo and screw conveyor can be customized according to customer needs.
The stationary concrete batching plants is composed of mixing, batching and electrical control system etc.
The weighing system has very high weighing accuracy,the error is less than 1%.

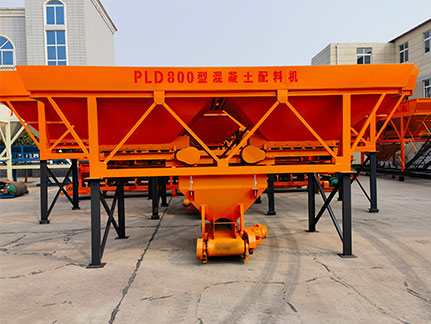

The Batching System is PLD800 concrete batching machine,it has adopted electric weighing automatically be applied for correction and measure.

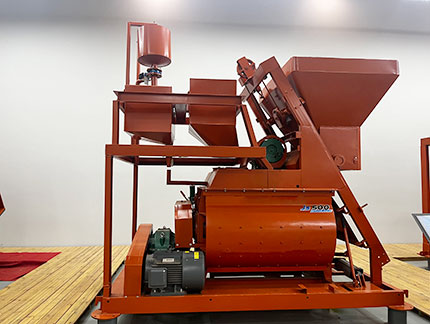

The Concrete Mixer is JS500 concrete mixer，it's twin horizontal shaft compulsory mixer with high capacity but less time, the belt feeding and adjustable hydraulic discharge door.
CHAND can provide a wide range of stationary concrete batching plants which have different capacities and specifications。And also，We can customize according to customer needs。
Technical Parameter
| Model | HZS25 |
| Theoretical Capacity (m3/h) | 25 |
| Discharging Height (m) | 1.5-3.8 |
| Working Cycle Time (s) | 72s |
| Working Dimension(mm) | 17843x11430x13000 |
| Total Power (kw) | 50.25 |
| Concrete Mixer | JS500 |
| Aggregate batching machine | PLD800 |
| Air compressor model | VA-0.36/8 |
| Rated Exhaust Pressure (MPa) | 0.8 |
| Exhaust Volume (m3/min) | 0.36 |
| Motor Power (kw) | 2.2 |
| Aggregate Weighing Accuracy（kg） | ±2% |
| Cement Weighing Accuracy（kg） | ±1% |
| Water Weighing Accuracy（kg） | ±1% |
| Additive Weighing Accuracy（kg） | ±1% |
Product Components
- Shaft end sealing technology, effectively prevents mud, easy to clean;
- Anti-stick shaft technology, reduces the frequency and workload of main engine cleaning;
- Long service life;
- Easy to operate, high mixing efficiency.
- Mainly divided into aggregate weighing, powder weighing and liquid weighing;
- Highly intelligent, all weighing uses electronic scales and microcomputer control;
- High measurement accuracy, with buffer device and automatic compensation function;
- Aggregate weighing accuracy is controlled at±2%;
- The weighing accuracy of cement, powder, water and admixtures reaches±1%.
- Powder is stored in fully enclosed steel structure silos;
- Additives are stored in steel structure containers;
- Good storage effect.
- Intelligent operating system, the system can automatically diagnose, stable and reliable;
- Authorization control can be set according to customer needs;
- Can record the entire operation process of the operator;
- Pre-scheduled production orders can be set at any time;
- Simple operation, friendly interface, can fully use the mouse operating system;
- Complete production log, record abnormalities, ensure production safety;
- Reliable and efficient production management system;
- Computer hot backup function.
- Key dust removal technology based on timing control;
- Equipped with intelligent pressure safety system;
- The dust collector and aggregate buffer hopper are designed in an integrated manner, with high dust removal efficiency;
- The material yard and batching silo loading point use a spray system to reduce dust;
- The powder silo adopts imported dust collector.
Product Features
Packaging & Shipping
Before delivery, we will assemble and debug the equipment in the factory, and the parts will be installed on the machine to help customers reduce installation troubles and ensure that the equipment is delivered to customers intact.
