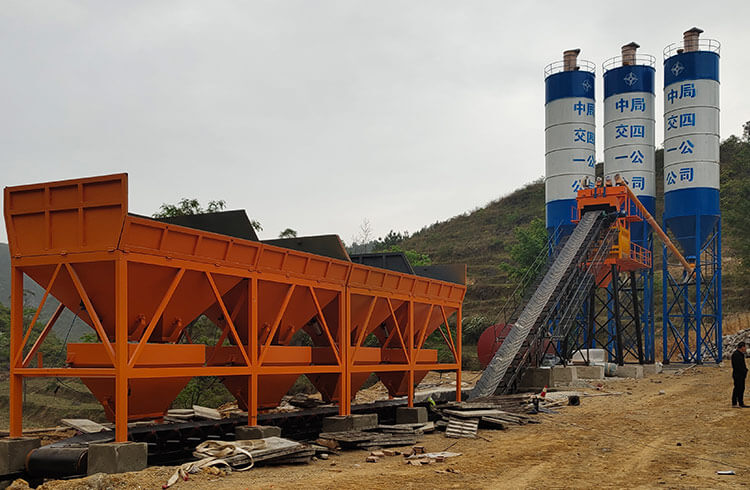

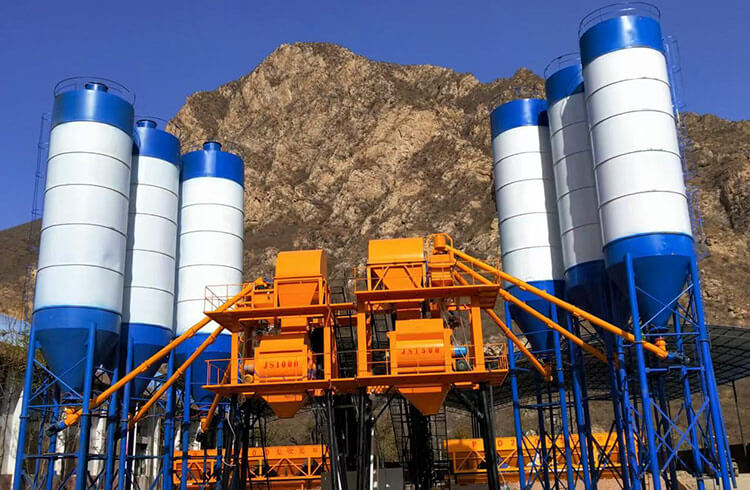

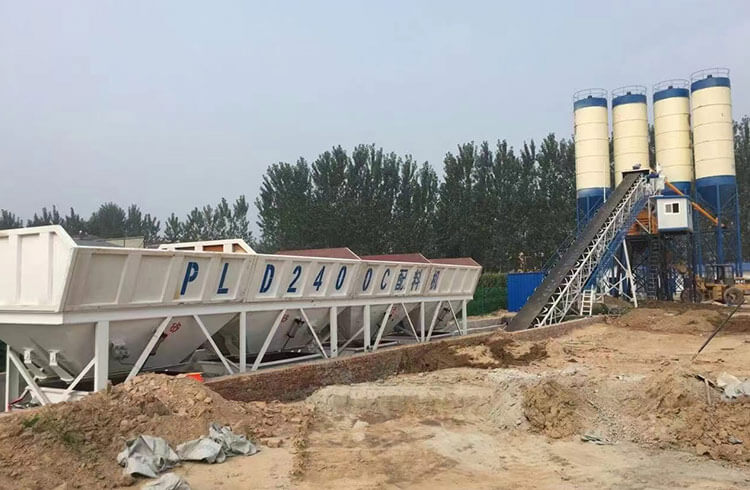

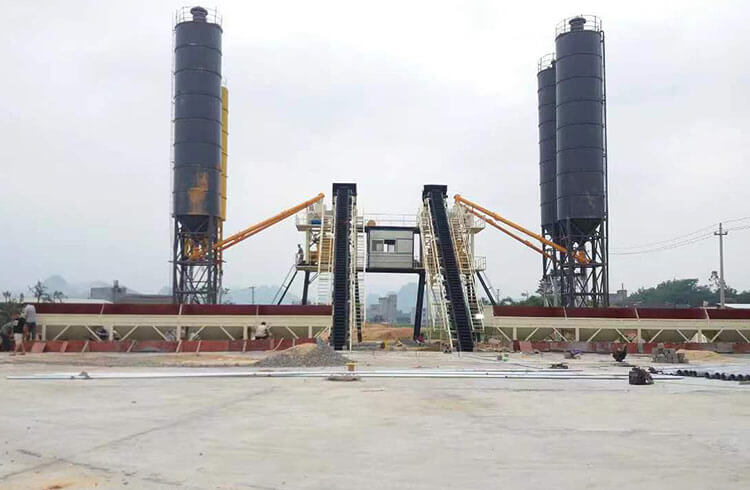

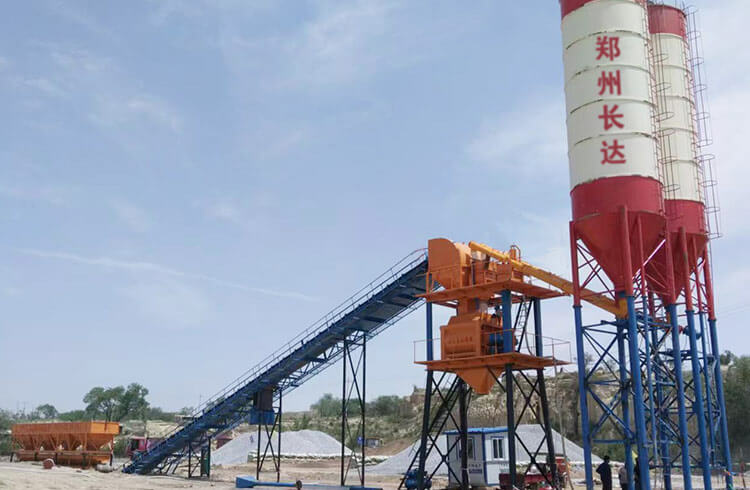

CHAND's 90m³/h concrete batching plant is composed of mixing, batching and electrical control system etc,and the quantity of cement silo and screw conveyor can be customized according to customer needs.Modular design, easy to install and disassemble.
90m³/h stationary concrete batching plant can produce various types of concrete such as plastic concrete and dry hard concrete.

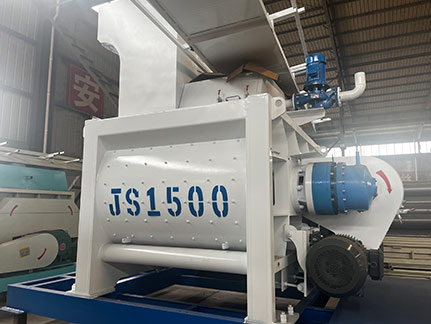

The Concrete Mixer is JS1500 concrete mixer，it's twin horizontal shaft compulsory mixer with high capacity but less time, the belt feeding and adjustable hydraulic discharge door.

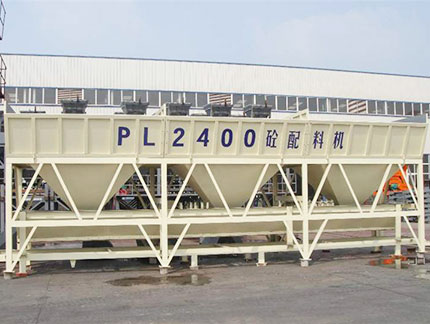

Batching System is PLD2400 concrete batching machine/Individual batching machine.
Teighing system has very high weighing accuracy,it has adopted electric weighing automatically be applied for correction and measure,the error is less than 1%.
CHAND's stationary concrete batching plant is suitable for water conservancy, electricity, railways, highways, tunnels, bridge arches, ports and docks, and national defense projects.,and other commercial concrete and concrete construction,it’s mostly preferred for high capacity concrete production requirements for special projects and for the projects which will take a long time in the same location.
CHAND has a wide range of stationary concrete batching plants which have production capacity from 25 m³/h to 180 m³/h of one mixer.
Technical Parameter
| Concrete batching plant | Model | HZS90 |
| Theoretical capacity (m3/h) | 90 | |
| Discharging height (m) | 4.2 | |
| Working cycle time (s) | 60 | |
| Dimensions(m) | 60x12x20 | |
| Powder silo capacity(T) | 100x4 | |
| Total Power（kw） | 155 | |
| Concrete Mixer | Concrete Mixer | JS1500 |
| Aggregate diameter | ≤60 | |
| Motor Power（kw） | 30x2 | |
| Batching machine | Aggregate batching machine | PLD2400 |
| Aggregate Type | 4 | |
| Aggregate silo capacity（m3） | 10 | |
| Pneumatic system | Exhaust Volume（m3/min） | 1.67 |
| Rated Exhaust Pressure（Mpa） | 0.8 | |
| Motor Power（kw） | 11 | |
| Weighing system | Aggregate Weighing Accuracy（kg） | ±2% |
| Cement Weighing Accuracy（kg） | ±1% | |
| Water Weighing Accuracy（kg） | ±1% | |
| Additive Weighing Accuracy （kg） | ±1% |
Product Components
- Shaft end sealing technology, effectively prevents mud, easy to clean;
- Anti-stick shaft technology, reduces the frequency and workload of main engine cleaning;
- Long service life;
- Easy to operate, high mixing efficiency.
- Mainly divided into aggregate weighing, powder weighing and liquid weighing;
- Highly intelligent, all weighing uses electronic scales and microcomputer control;
- High measurement accuracy, with buffer device and automatic compensation function;
- Aggregate weighing accuracy is controlled at±2%;
- The weighing accuracy of cement, powder, water and admixtures reaches±1%.
CHAND has a wide range of stationary concrete batching plants which have production capacity from 25 m³/h to 180 m³/h of one mixer.
- The aggregate batching system and aggregate buffer system have large material angles;
- Single-door discharge port, single-cylinder discharge door, smooth material flow;
- Octagonal discharge hopper, unique variable-diameter discharge port design, stable and smooth conveying;
- The aggregate flow is fully automated and efficient.

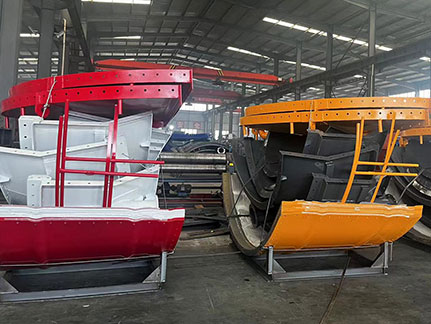

- Powder is stored in fully enclosed steel structure silos;
- Additives are stored in steel structure containers;
- Good storage effect.
- Intelligent operating system, the system can automatically diagnose, stable and reliable;
- Authorization control can be set according to customer needs;
- Can record the entire operation process of the operator;
- Pre-scheduled production orders can be set at any time;
- Simple operation, friendly interface, can fully use the mouse operating system;
- Complete production log, record abnormalities, ensure production safety;
- Reliable and efficient production management system;
- Computer hot backup function.
- Key dust removal technology based on timing control;
- Equipped with intelligent pressure safety system;
- The dust collector and aggregate buffer hopper are designed in an integrated manner, with high dust removal efficiency;
- The material yard and batching silo loading point use a spray system to reduce dust;
- The powder silo adopts imported dust collector.
Product Features
Packaging & Shipping
Before delivery, we will assemble and debug the equipment in the factory, and the parts will be installed on the machine to help customers reduce installation troubles and ensure that the equipment is delivered to customers intact.
