Concrete pump is devices used to transport concrete from mixers or storage containers to construction sites. They are commonly employed in large construction projects, such as buildings, bridges, and tunnels.
CHAND have different types of concrete mixer trucks for users to choose, such as Tunnel Trailer Pump，Tunnel Truck-Mounted Pump，Wet Spray Truck，Fine Stone Concrete Pump，Electric Concrete Pump，Diesel Concrete Pump，Electric Concrete Mixing Pump.
The main characteristics and functions of CHAND concrete pump: Working Principle: Concrete pumps use a piston or screw mechanism to draw concrete from the inlet and deliver it to the outlet under high pressure, completing the concrete transport process. Types: Trailer Pump: Can be towed to the construction site, suitable for small projects. Truck-mounted Pump: Installed on a truck for quick mobility, suitable for medium projects. Stationary Pump: Typically used for large projects, installed in a fixed position and transports concrete through pipelines. Advantages: High Efficiency: Capable of rapidly and continuously delivering large quantities of concrete. Labor Savings: Reduces the need for manual transportation of concrete. Strong Adaptability: Can operate in complex construction environments, such as high-rise buildings and tight spaces. Application Areas: Construction projects (residential and commercial buildings) Infrastructure construction (roads, bridges, tunnels) Prefabricated component production Safety and Maintenance: Regular inspection and maintenance are crucial to ensure the normal operation of concrete pumps, including cleaning pipelines, checking seals, and inspecting hydraulic systems. Concrete pumps play a vital role in modern construction, enhancing efficiency and safety.
Product Parameters

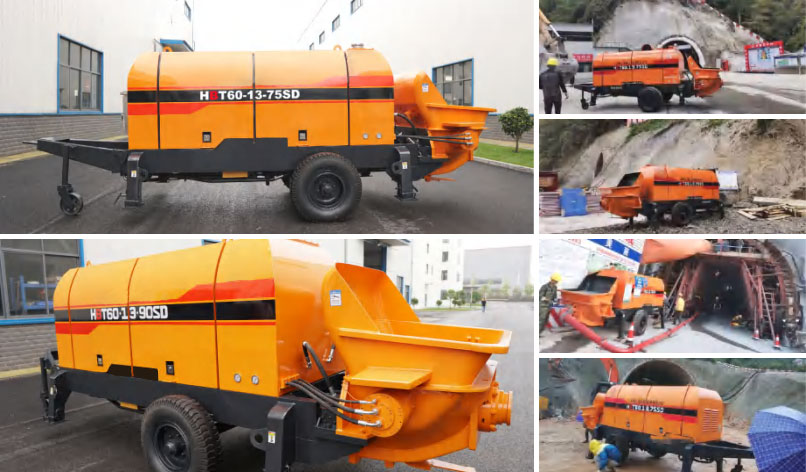

Tunnel Trailer Pump
Model
HBT60.13.75SD
Maximum theoretical displacement (M³/H)
67/43
Concrete delivery pressure (MPA)
13/7
Maximum theoretical pumping distance (M)
Vertical 150/Horizontal 450
Concrete distribution valve type
S valve
Delivery cylinder specifications (MM)
Φ230X1400
Oil cylinder specifications (MM)
Φ140X80X1400
Material capacity (M³)
0.8
Motor power (KW)
75
Hydraulic oil tank capacity (L)
360
The largest particle size of the material (MM)
40~50
Total weight (KG)
5600
Device size (MM)
6000*2100*2250

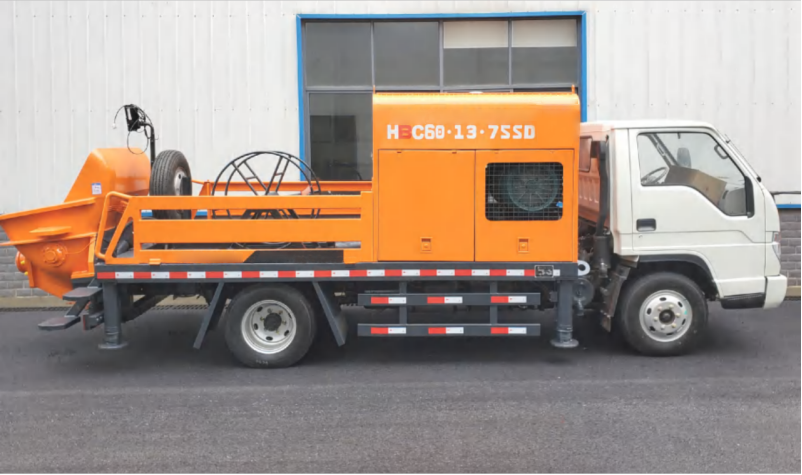

Tunnel Truck-Mounted Pump
Model
HBC60.13.75SD
Maximum theoretical concrete pumping capacity （M³/H）
67/43
Maximum concrete pumping pressure （MPA）
13/7
Maximum theoretical conveying distance （M）
Vertical 150/Horizontal 450
Motor （KW）
75
Concrete cylinder specifications * stroke （MM）
Φ230*1400
Oil cylinder specifications (outer diameter X inner diameter X stroke)（MM）
Φ140X80X1400
Material volume * height （L*MM）
0.8*1080
Hydraulic oil tank capacity （L）
360
Allowable concrete slump （CM）
18-24
Outlet diameter （MM）
180
Delivery pipe inner diameter （MM）
125
Overall dimensions (length × width × height)（MM）
7800*2300*2500
Total machine weight（KG）
8500

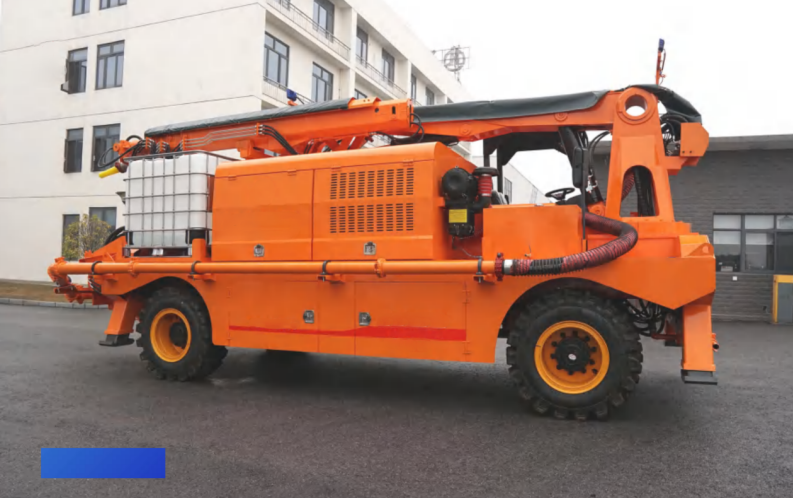

Wet Spray Truck
Long
7898mm
Motor rated power
55kw
Width
2650mm
Minimum operating voltage
350V
Height
3310mm
Concrete delivery cylinder diameter
Φ180
Curb Weight
16000kg
Pumping master cylinder stroke
1000mm
Work drive mode
380V electric motor Chassis power take-off (emergency)
Theoretical injection amount
30m³/h
Engine Manufacturer
Yuchai Power
Delivery pipe diameter
DN125mm-DN90mm variable diameter
Engine power
103kw
Maximum particle size of spray aggregate
Φ16mm
Walking system
Homemade wheel
Hopper capacity
0.4m³
Drive mode
Four-wheel drive
Concrete outlet pressure
7MPa
Wheelbase
4200mm
Quick-setting agent Driving method
Hose pump + variable frequency motor
Maximum driving speed
25km/h
Quick-setting agent motor power
1.5kW
Maximum gradient
30°
Quick-setting agent flow rate
1000L/H
Minimum ground clearance
310mm
Jet stabilized wind pressure
6-8 Bar
Braking distance
5m（20km/h）
Injection operation method
Wireless remote control

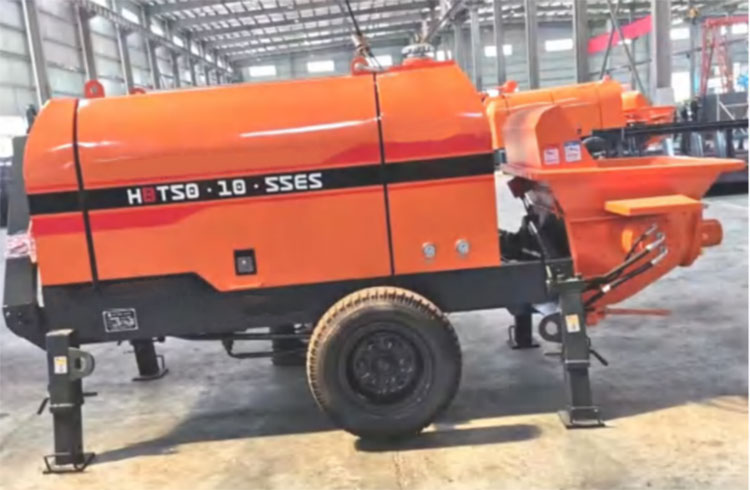

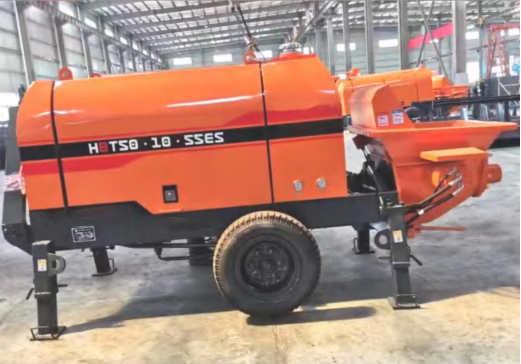

Fine Stone Concrete Pump
Model
HBTS30.6.30ES
HBTS40.8.45ES
HBTS50.10.55ES
Maximum theoretical displacement (M³/H)
25
45
52
Concrete delivery pressure (MPA)
6
8
10
Maximum theoretical pumping distance (M)
Vertical 50/Horizontal 200
Vertical 200/Horizontal 800
Vertical 250/Horizontal 1000
Concrete distribution valve type
S valve
S valve
S valve
Delivery cylinder specifications (MM)
Φ140X500
Φ160X977
Φ160X977
Oil cylinder specifications (MM)
Φ90X55X550
Φ90X65X800
Φ100X70X800
Material capacity (M³)
0.6
0.7
0.7
Motor power (KW)
30
45
55
Hydraulic oil tank capacity (L)
170
180
180
The largest particle size of the material (MM)
10
15
15
Total weight (KGS)
2000
3200
3500
Device size (MM)
3700*1700*1700
4200*1850*1750
4200*1850*1750

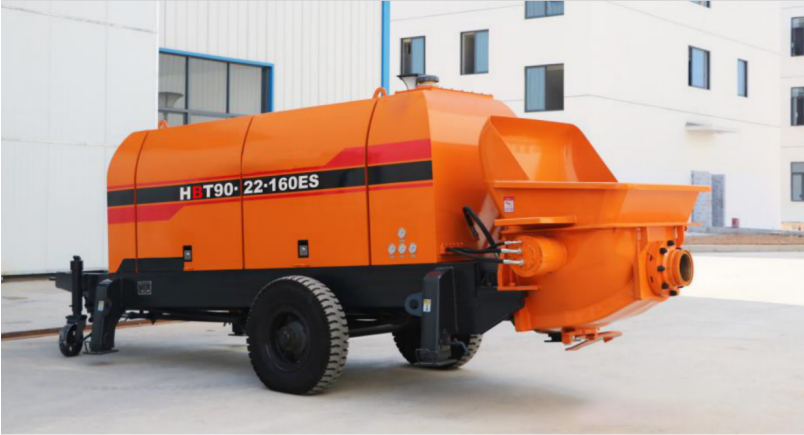

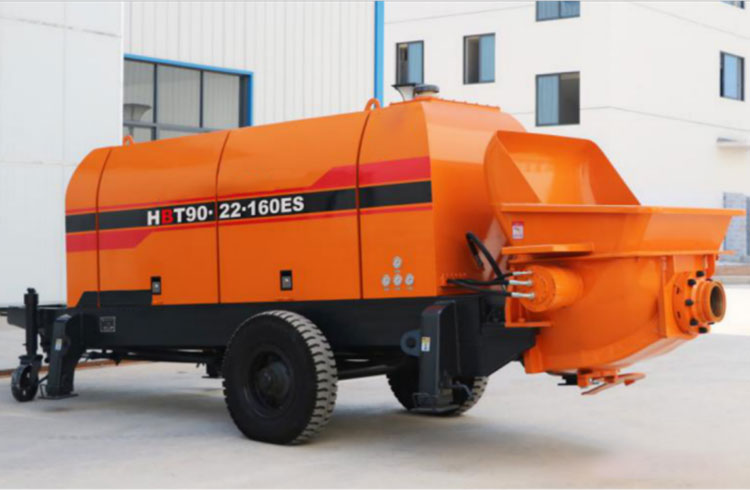

Electric Concrete Pump
Model
HBT40.8.45ES
HBT50.10.55ES
HBT50.13.55ES
HBT60.13.90ES
HBT80.16.110ES
HBT80.18.132ES
HBT90.22.160ES
HBT90.24.200ES
Maximum theoretical displacement (M³/H)
40
52
55
67/43
86/60
88/62
95/60
98/62
Concrete delivery pressure(MPA)
8
10
13
13/7
16/11
18/11
22/16
24/18
Maximum theoretical pumping distance(M)
Vertical 80/Horizontal 280
Vertical 180/Horizontal 500
Vertical 220/Horizontal 800
Vertical 280/Horizontal 1000
Vertical 320/Horizontal 1300
Vertical 350/Horizontal 1500
Vertical 400/Horizontal 2000
Vertical 450/Horizontal 2200
Concrete distribution valve type
S valve
S valve
S valve
S valve
S valve
S valve
S valve
S valve
Delivery cylinder specifications (MM)
Φ200X977
Φ200X977
Φ200X977
Φ200X1600
Φ200X1800
Φ200X1800
Φ200X1600
Φ200X1600
Oil cylinder specifications (MM)
Φ90X65X800
Φ100X70X800
Φ125X80X1000
Φ125X80X1600
Φ140X90X1800
Φ150X100X1800
Φ160X110X1600
Φ180X120X1600
Material capacity (M³)
0.7
0.7
0.7
0.8
0.8
0.8
0.8
0.8
Motor power (KW)
45
55
55
90
110
132
160
90+110
Hydraulic oil tank capacity (L)
180
180
180
360
360
360
360
400
The largest particle size of the material (MM)
40
40
40
40
40
40
40
40
Total weight (KGS)
3800
4000
4200
5600
6200
6500
6700
7180
Device size (MM)
4500*1850*1750
4500*1850*1750
4500*1850*1750
6000*2100*2250
6300*2100*2250
6300*2100*2250
6800*2100*2250
6900*2280*2350

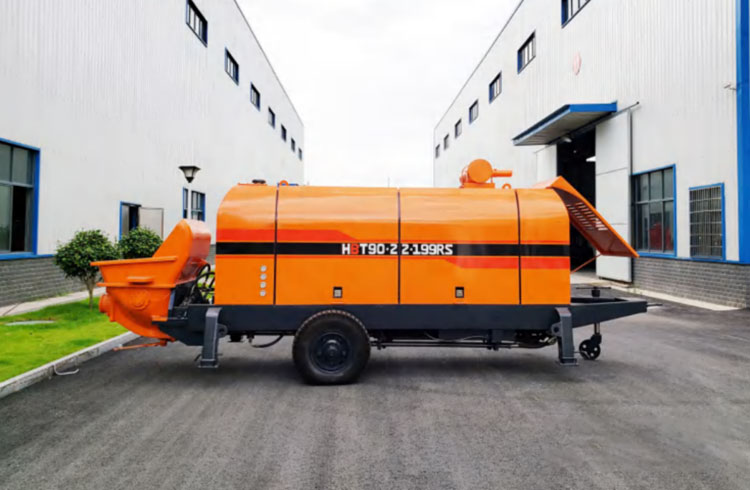

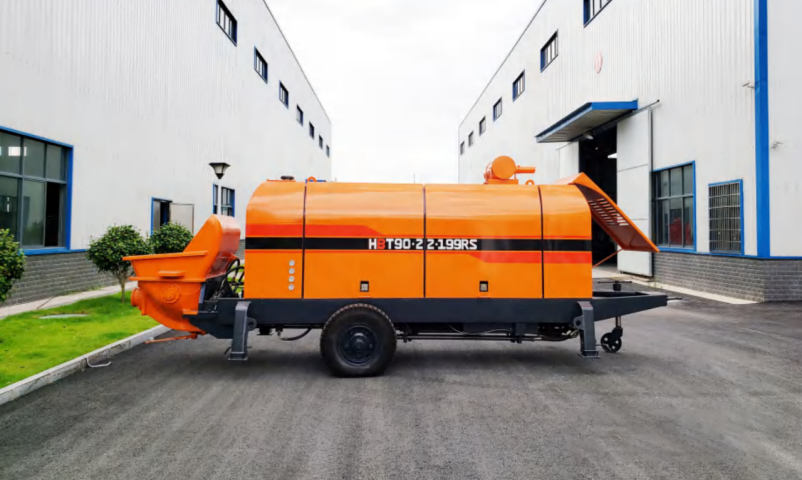

Diesel Concrete Pump
Model
HBT40.8.62RS
HBT50.10.85RS
HBT60.13.130RS
HBT60.16.130RS
HBT80.16.176RS
HBT90.22.199RS
Maximum theoretical displacement (M³/H)
40
52
65/41
68/42
86/60
95/62
Concrete delivery pressure (MPA)
8
10
13/7
16/8
16/11
22/16
Maximum theoretical pumping distance (M)
Vertical 80/Horizontal 280
Vertical 180/Horizontal 500
Vertical 280/Horizontal 1000
Vertical 300/Horizontal 1200
Vertical 320/Horizontal 1300
Vertical 400/Horizontal 2000
Concrete distribution valve type
S valve
S valve
S valve
S valve
S valve
S valve
Delivery cylinder specifications (MM)
Φ200X977
Φ200X977
Φ200X1600
Φ200X1600
Φ200X1800
Φ200X1600
Oil cylinder specifications (MM)
Φ90X65X800
Φ100X70X800
Φ125X80X1600
Φ140X90X1600
Φ140X90X1800
Φ160X110X1600
Material capacity (M³)
0.7
0.7
0.8
0.8
0.8
0.8
Diesel engine power (KW)
62
85
130
130
176
199
Hydraulic oil tank capacity (L)
180
180
360
360
360
360
The largest particle size of the material (MM)
40
40
40
40
40
40
Total weight (KGS)
4500
4800
6300
6300
6500
6800
Device size (MM)
4500*1850*1950
4500*1850*1950
6300*2100*2250
6300*2100*2250
6800*2100*2350
6800*2100*2350

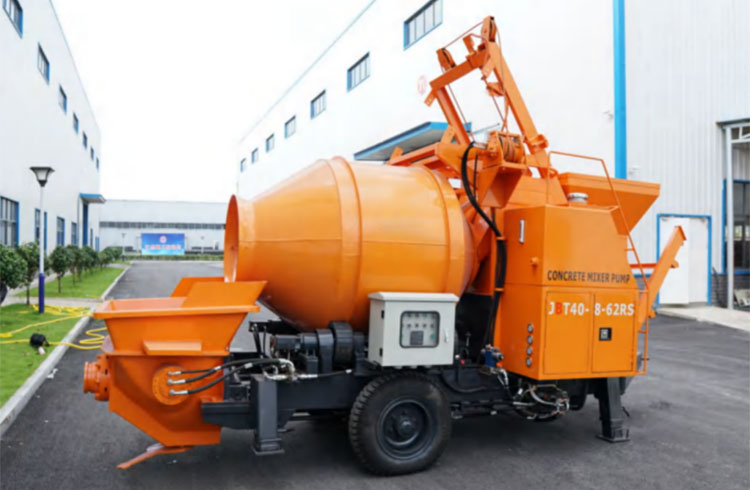

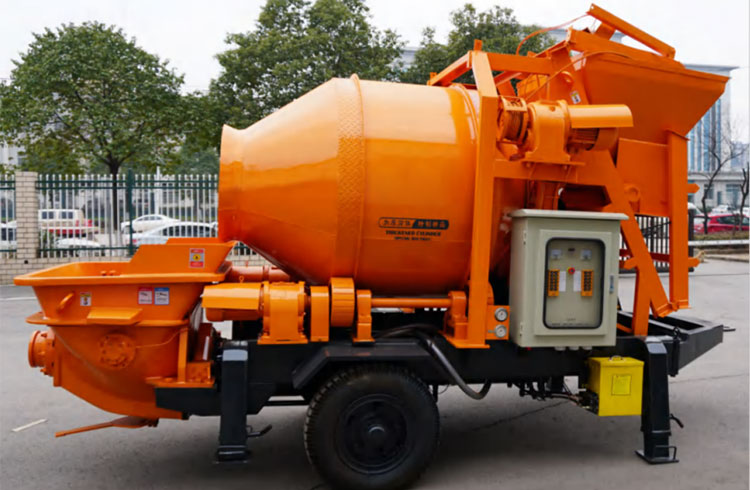

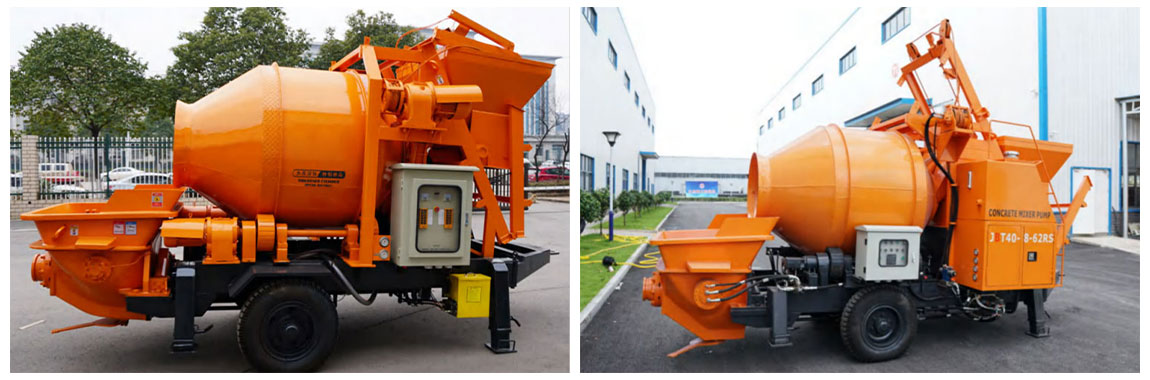

Electric Concrete Mixing Pump
Model
JBT30.6.30ES
JBT30.8.30ES
JBT40.8.37ES
JBT50.10.45ES
Maximum theoretical displacement (M³/H)
25
30
40
50
Concrete delivery pressure(MPA)
6
8
8
10
Maximum theoretical pumping distance(M)
Vertical 50/Horizontal 200
Vertical 60/Horizontal 250
Vertical 80/Horizontal 280
Vertical 180/Horizontal 500
Concrete distribution valve type
S valve
S valve
S valve
S valve
Delivery cylinder specifications (MM)
Φ200X500
Φ200X977
Φ200X977
Φ200X977
Oil cylinder specifications (MM)
Φ90X55X500
Φ100X70X550
Φ90X65X800
Φ100X70X800
Material capacity (M³)
0.5
0.5
0.6
0.6
Motor power (KW)
30
30
37
45
Hydraulic oil tank capacity (L)
170
170
180
180
The largest particle size of the material (MM)
40
40
40
40
Total weight (KGS)
4500
4950
5000
5100
Device size (MM)
4500*2100*3200
5100*2100*3200
5100*2100*3200
5100*2100*3200
