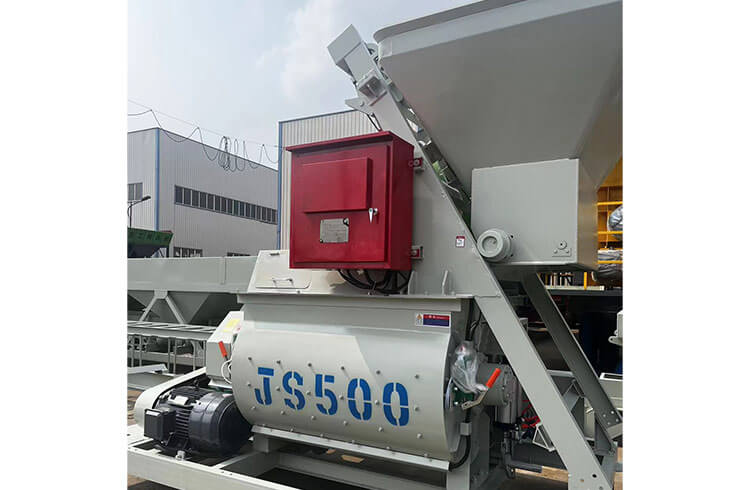

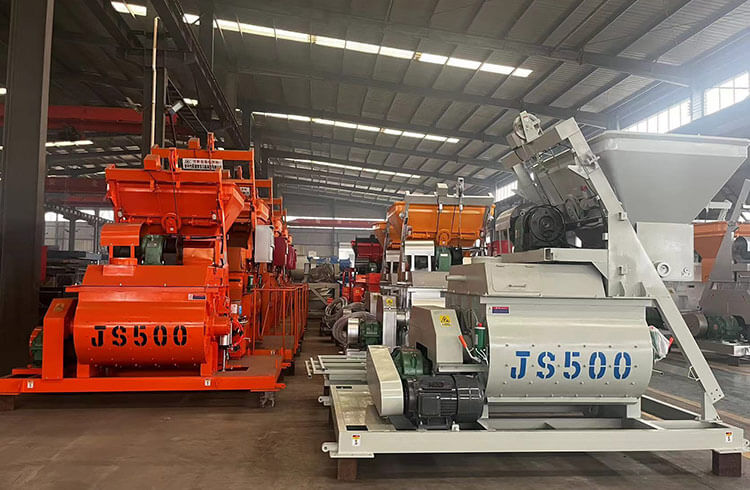

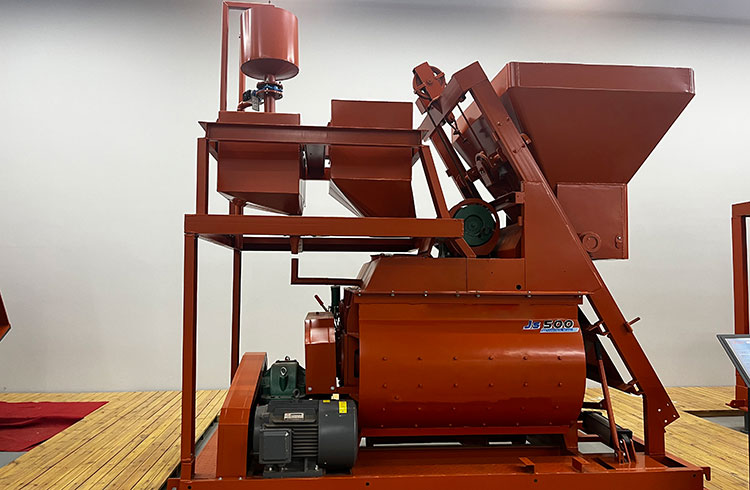

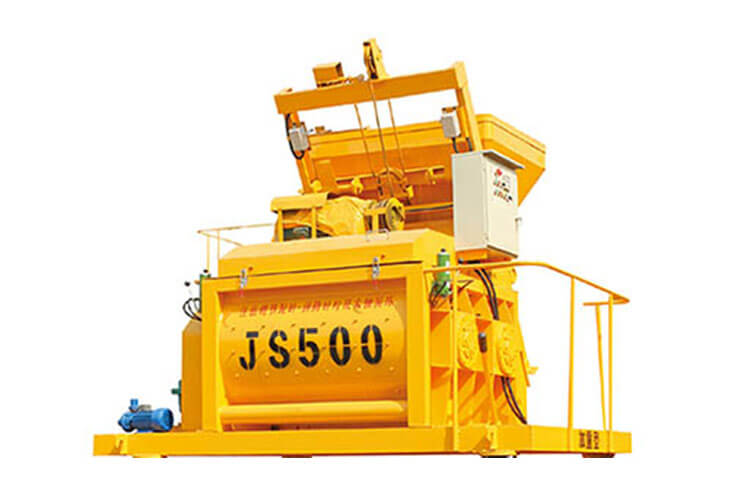

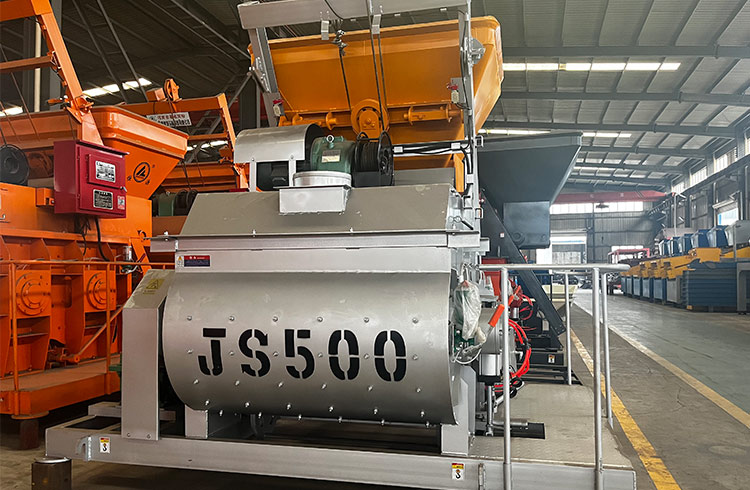

JS500 Concrete Mixer

Product Introduction

Model：JS500
Productivity(m³/h)：25
Maximum Size of Aggregate(pebble/gravel)：40/50mm
Bucket Hoisting speed( r/min)：18
Total weight(Kg)： 3500

Applicatiop: CHAND JS500 concrete mixer can be used as a supporting host of concrete batching plant and is widely used in engineering construction such as roads, bridges, dams, and ports.

CHAND has an excellent manufacturing team with more than 20 years of experience.
All products can be customized to meet your needs and improve productivity and passed ISO9001 quality certification.
JS500 concrete mixer has a discharge of 0.5 cubic meters each time and can mix dry hard concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and various mortars.
It is suitable for all kinds of large, medium and small precast concrete plants.
If you are looking for an efficient and easy-to-use concrete mixer device, CHAND JS500 concrete mixer is undoubtedly your best option.
Our equipment has novel structure, beautiful appearance, convenient operation and maintenance, high production efficiency, good mixing quality, easy to move and low noise.

Product Parameter

Model		JS500
Discharge volume		500L
Charging volume		800L
Theoretical capacity		≥25m³/h
Maximum aggregate size (pebble/gravel) mm		40/50
Mixing blade	Speed	31r/min
	Quantity	2x6
Mixing motor	Model	Y180M-4
	Power	18.5kw
Lifting motor	Model	YEZ1325-4
	Power	5.5kw
Pump motor	Model	BL12-16-1.1
	Power	1.1kw
Bucket Hoisting speed		18m/min
Dimensions (L x W x H)	Transportation Status	3000x2530x2630mm
	Working Status	4461x3000x4180mm
Total weight		3500kg
Discharging height		2000mm

Product Description

JS500 concrete mixer is a twin-shaft forced mixer, which can not only work independently and efficiently, but also can be combined with PLD series batching machine to form a concrete mixing station, showing double advantages. In addition, we can also customize according to the special needs of users to better meet the requirements of different customers.

Product Advantages



Good mixing quality; several groups of mixing blades in the mixing drum are staggered, so that the mixture can be quickly and evenly mixed in the drum.



High degree of automation; highly integrated equipment, whether it is loading, unloading, or water supply, all adopt highly automated systems.



Reasonable structure, safe and reliable use, easy operation and maintenance.



High efficiency, low energy consumption, high economic benefits.



High wear resistance, high alloy wear-resistant materials, strong impact resistance, extended maintenance cycle.

Packaging & Shipping

Before delivery, we will assemble and debug the equipment in the factory, and the parts will be installed on the machine to help customers reduce installation troubles and ensure that the equipment is delivered to customers intact.
