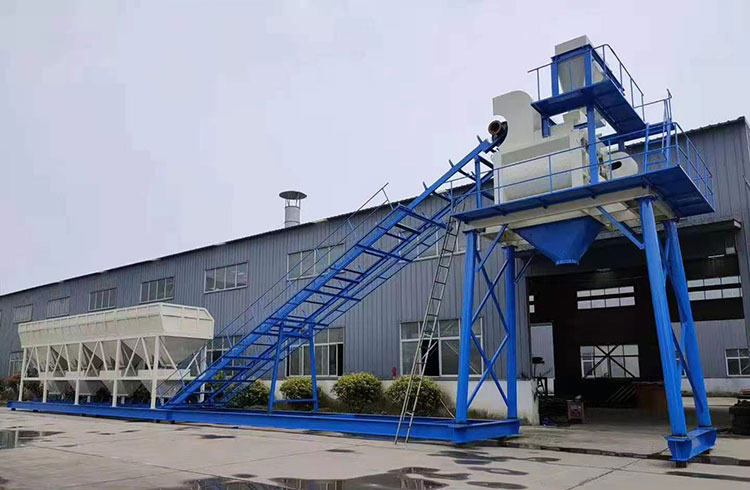

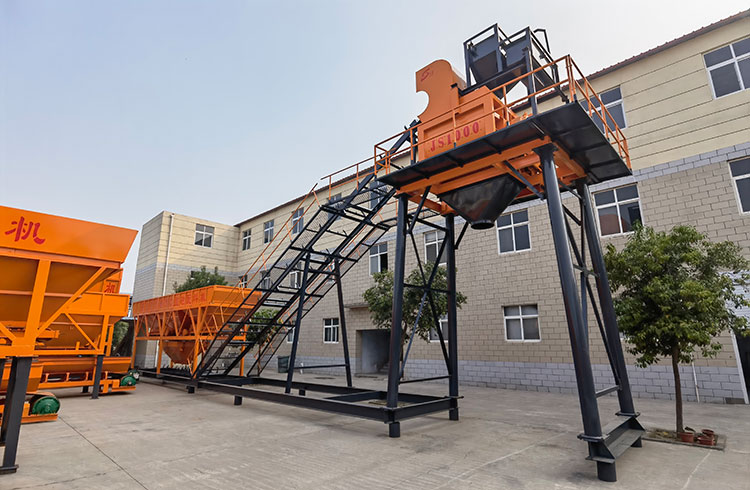

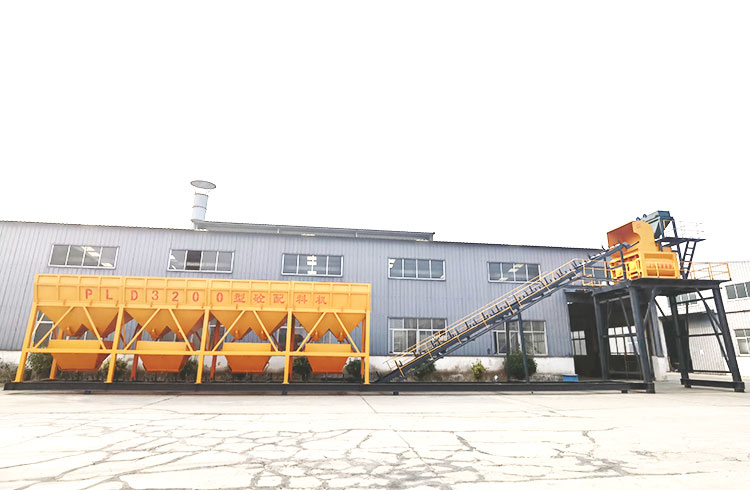

MHZS foundation-free concrete batching plant is a kind of efficient and flexible concrete production equipment.
CHAND's MHZS foundation-free concrete batching plant is one of the best-selling plant,CHAND has two models: MHZS90、MHZS90、YHZS180.
It solves the problems of traditional mixing plants, such as cumbersome assembly and dismantling, time-consuming, labor-intensive and costly.

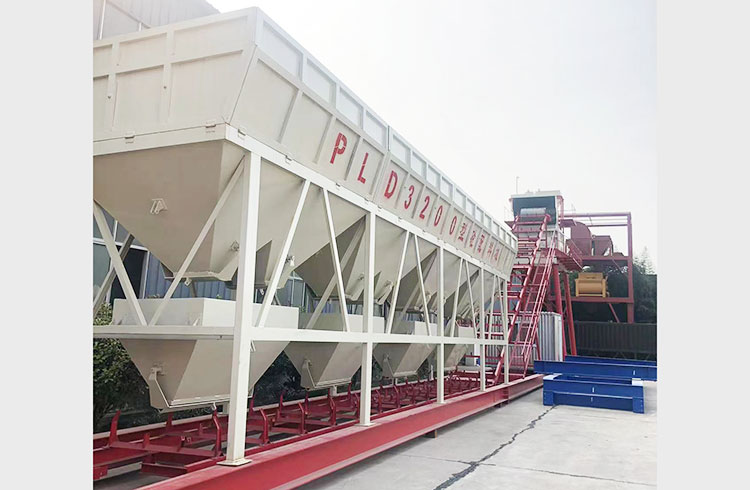

MHZS foundation-free concrete batching plant consists of concrete mixer, batching system, control system, conveying system, mobile chassis, etc.Modular structure and easy to install and disassemble。
It is widely used in construction projects, ports, airports, roads, bridges and other infrastructure and prefabricated component plants.
Additionally, it is particularly suitable for temporary construction projects, areas with incomplete infrastructure, and small-scale concrete demand projects.
The company can provide a wide range of concrete batching plant which have different capacities and specifications.We can customize according to customer needs.
Technical Parameter
| Model | MHZS90 | MHZS120 | MHZS180 |
| Theoretical capacity | 90m3/h | 120m3/h | 180m3/h |
| Mixer capacity | 1.5m3 | 2.0m3 | 3.0m3 |
| Batching machine | PLD2400 | PLD3200 | PLD4800 |
| Metering method of batching machine | Separate metering | Separate metering | Separate metering |
| Volume and specification of powder silo | 100-150t（Horizontal/vertical） | 100-150t（Horizontal/vertical） | 150-200t（Horizontal/vertical） |
| Discharge height | 4.0m | 4.0m | 4.2m |
| Total power | 125kw | 143kw | 186kw |
| Dimensions(L×W×H)（m） | 17.5×3×3 | 17.0×3×3 | 17.0×3×3 |
| Aggregate weighing accuracy（kg） | ±2% | ±2% | ±2% |
| Cement weighing accuracy（kg） | ±1% | ±1% | ±1% |
| Water weighing accuracy（kg） | ±1% | ±1% | ±1% |
| Additive weighing accuracy（kg） | ±1% | ±1% | ±1% |
Product Features
Packaging & Shipping
Before delivery, we will assemble and debug the equipment in the factory, and the parts will be installed on the machine to help customers reduce installation troubles and ensure that the equipment is delivered to customers intact.
