CHAND's MP series planetary concrete mixer have different production capacity from 0.5m³/h to 1.5 m³/h of each time.
Equipped with high-quality unloading system and control system, the requirements and standards for mixing effect are more adjustable.

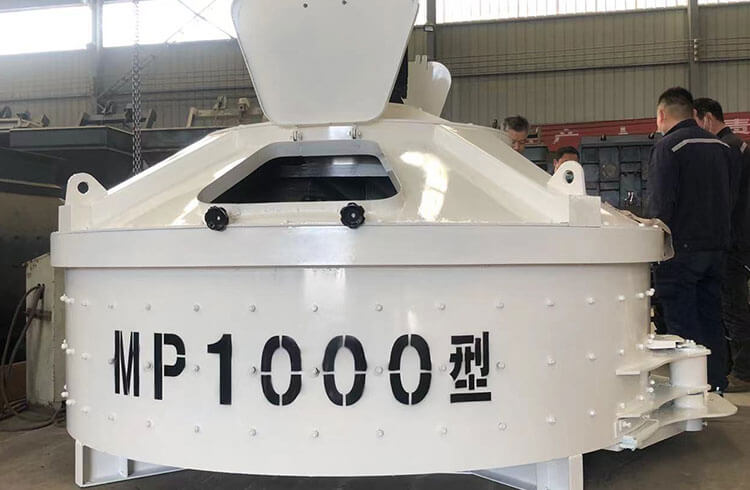

MP1000 planetary concrete mixer 1 cubic meters of production capacity each time,adopts unique design, compact structure,beautiful appearance, wide range of uses,high mixing capacity and extremely high production efficiency. It is an ideal equipment for material mixing.
Due to the special design of the mixing arms, the main body of the mixing arm rotates in the middle section, around which the other mixing arms move in a rotary motion. By rotating around their axis, a high degree of homogeneity of the mixture is ensured.
It can quickly mix materials with complex proportions efficiently, improve production quality, and make the later production and processing of materials better.
Advantages of CHAND MP1000 planetary concrete mixer:
High quality also in demanding mixtures
High homogeneity of the mixture even with short mixing times
Durable spare parts
Wear-resistant
Easy maintenance and care
Durable housing
Low maintenance costs
Product Parameter
| Model | MP1000 |
| Intput capacity（L） | 1500 |
| Output capacity（L） | 1000 |
| Hydraulic discharge power(kw) | 3 |
| Input capacity (kg) | 2400 |
| Mixing power(kw) | 37 |
| Number of planets (Nr) | 2 |
| Number of blades (Nr) | 4 |
| Number of scrapers (Nr) | 2 |
| Revolution/rotation | 11/26 |
| Weight (kg) | 6500 |
| Dimensions (mm)(L×W×H) | 2891x2602x2217 |
Product Description
Product Features
Vertical Axis Planetary Mixer Details
The revolution and rotation of the mixing blades are determined through in-depth research and continuous testing, so that the mixer can achieve maximum productivity without segregation when mixing aggregates of various particle sizes and specific gravities. The material movement trajectory in the mixing barrel is smooth and continuous. When the revolution body rotates one circle, the movement trajectory of the mixing blade covers the entire mixing barrel.
The hardened gear reducer is used, the quality is stable, and the internal transmission of the mixer adopts a large modulus gear transmission, which has high reliability, low noise, and long service life.
The discharge door is equipped with a limit switch, and the door opening size can be set according to the needs. Up to 3 discharge doors can be set, and a specially designed sealing device is used to ensure the reliability of the seal.
The specially designed mixing device makes the mixing speed faster, the mixing is more uniform, and there is no pile phenomenon.
Fully automatic control, simple and fast operation, fast running speed, strong anti-interference ability, and high efficiency.
Packaging & Shipping
Each equipment will be thoroughly and strictly inspected before packing to ensure that all parts are intact, and will be accompanied by a detailed operation manual and maintenance guide to ensure that the equipment is delivered to the customer complete and on time.
