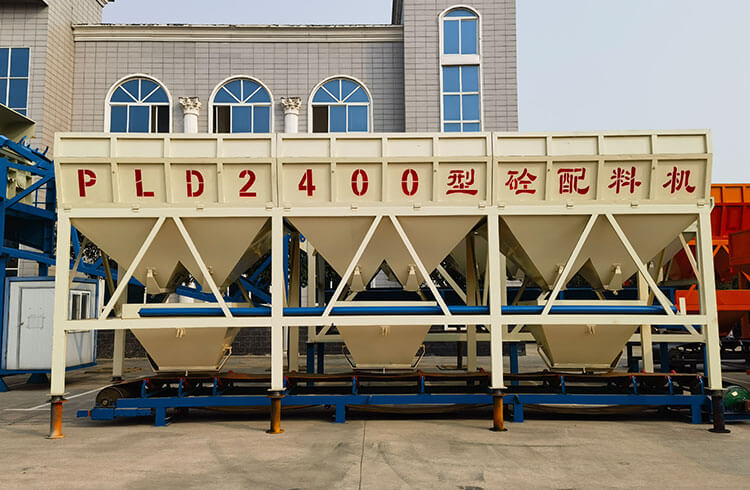

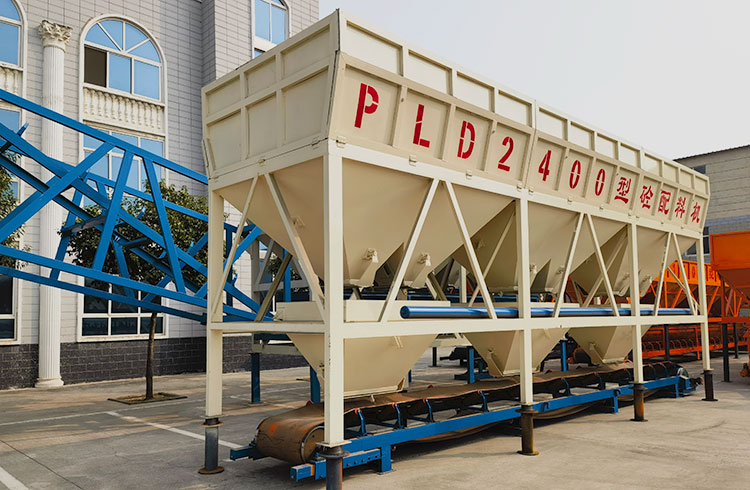

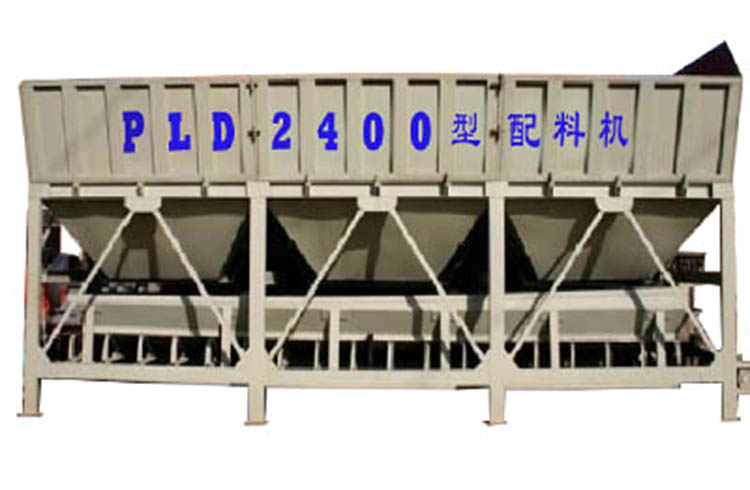

CHAND‘s PLD2400 concrete batching machine has production capacity is 120m³/h .
PLD series concrete batching machine have different production capacity from 48m³/h to180m³/h of each time.
CHAND's PLD series concrete batching machine can be used with cement silos and other equipment, or with various types of mixers and metering devices.Meanwhile the price of CHAND's batching machine is just 1/2 to 1/3 of the batching plant of same standard..
PLD2400 concrete batching machine is an automatic batching equipment used in conjunction with a concrete mixer. It can automatically complete the batching process of 3-6 materials such as sand, stone, cement, etc. according to the concrete ratio designed by the user. It has the characteristics of high batching accuracy, fast speed, and high economic benefits.
PLD2400 concrete batching machine is widely used in large and medium-sized hydropower projects, construction sites, road construction, residential, commercial, industrial and other different scenarios, as well as concrete prefabricated component factories.
Product Parameter
| Model | PLD2400 |
| Volume of weighing hopper | 2400L |
| Volume of storing hopper | 4x10m3 |
| capacity | 120m3/h(Dry ingredients) |
| Ingredient accuracy | ±2% |
| Maximum weigh | 4000kg |
| Number of ingredients | 4种 |
| Feeding height | 3200mm |
| Speed of feed belt conveyor | 1.6m/s |
| Power | 11kw |
| Dimensions（LxWxH） | 13500x2500x3600mm |
PLD Concrete Batching Machine Category
1. The number of materials according to the material level is divided into: two buckets, three buckets, four buckets;
2. Divided into the matching of the mixing machine to be divided into: PL(D)800、1200、1600、2400、3200、4800；
3. The measurement method of the ingredients is divided into: cumulative measurement of each material, separate measurement of each material;
4. According to the method of controlling materials, it is divided into: belt type, cylinder type;
PLD series concrete batching machine consists of a material supply system, weighing system and electronic control system.
Product Features
Common Faults and Solutions
1. If control is out of control or misoperation occurs during batching, turn off the power supply of the batching machine controller and restart it.
2. If the weighing is inaccurate, check whether there is support around the weighing system and whether the eyebolts are flexible, remove the supporting debris, sensor drift error, and recalibrate the weighing system.
3. If a certain material is not batched, check the electrical control circuit and eliminate the fault.
4. If the tape deviates, you need to adjust the screw of the tensioning device.
Packaging & Shipping
When shipping, we select the appropriate logistics company according to the needs of customers to ensure that the batching machine is delivered to the designated location on time. All equipment undergoes strict quality inspection before shipment and comes with detailed operation manuals and maintenance guides to ensure that customers can use the equipment smoothly and efficiently.
