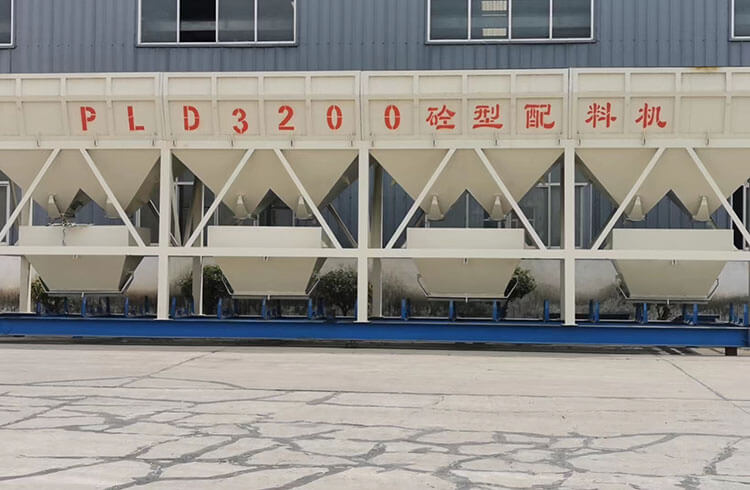

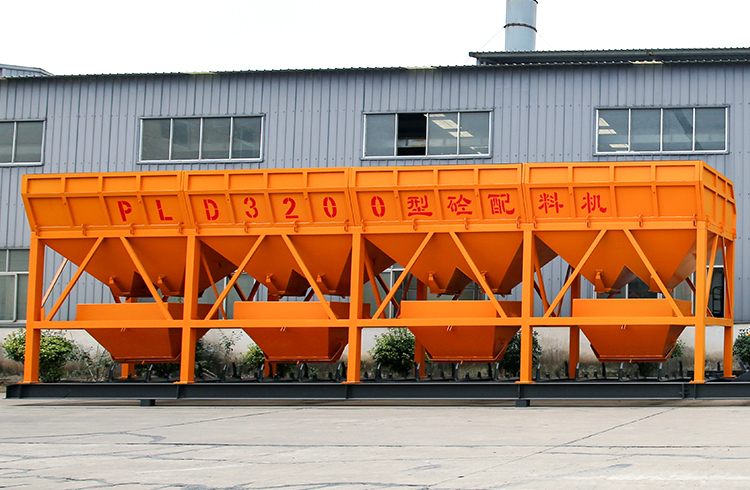

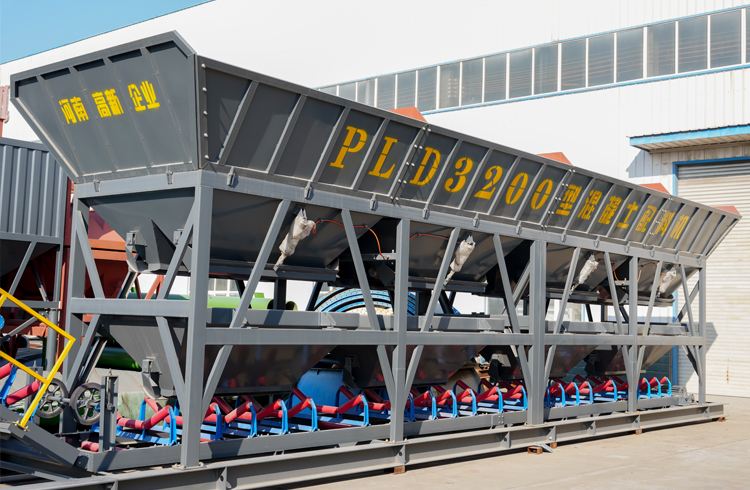

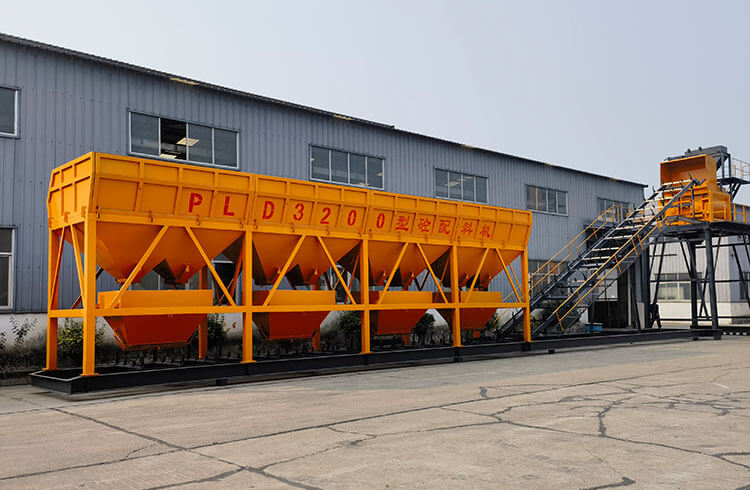

PLD3200 Concrete Batching Machine

CHAND PLD3200 concrete batching machine has production capacity is 160m³/h .

PLD series concrete batching machine have different production capacity from 48m³/h to180m³/h of each time.

CHAND's PLD series concrete batching machine can be used with cement silos and other equipment, or with various types of mixers and metering devices.Meanwhile the price of CHAND's batching machine is just 1/2 to 1/3 of the batching plant of same standard..

PLD3200 concrete batching machine is an automatic batching equipment used in conjunction with a concrete mixer. It can automatically complete the batching process of 3-6 materials such as sand, stone, cement, etc. according to the concrete ratio designed by the user. It has the characteristics of high batching accuracy, fast speed, and high economic benefits.

PLD3200 concrete batching machine is widely used in medium and small hydropower projects, construction sites, road construction, residential, commercial, industrial and other different scenarios, as well as concrete prefabricated component factories.

Product Parameter

Model	PLD3200
Volume of weighing hopper	3200L
Volume of storing hopper	4x15m³
capacity	160m³/h(Dry ingredients)
Ingredient accuracy	±2%
Maximum weigh	5000kg
Number of ingredients	4种
Feeding height	3500mm
Speed of feed belt conveyor	1.6m/s
Power	11kw
Dimensions（LxWxH）	14000x2800x4300mm

PLD Concrete Batching Machine Category

1. The number of materials according to the material level is divided into: two buckets, three buckets, four buckets;

2. Divided into the matching of the mixing machine to be divided into: PL(D)800、1200、1600、2400、3200、4800；

3. The measurement method of the ingredients is divided into: cumulative measurement of each material, separate measurement of each material;

4. According to the method of controlling materials, it is divided into: belt type, cylinder type;

PLD series concrete batching machine consists of a material supply system, weighing system and electronic control system.

PLD3200 concrete batching machine can batch 4 kinds of ingredients and weigh 4 hoppers cumulatively.

Product Features



The weighing measurement is accurate; the electronic weighing system is adopted to ensure the accuracy of each weighing, which greatly improves the accuracy of the concrete ingredients.



The accuracy of the ingredients is high; the PLD3200concrete batching machine have high precision ingredients and can meet the needs of various complex concrete ingredients.



Fast speed; the equipment is fast, improve work efficiency, and reduce waiting time.



The combination form is diversified; the PLD series concrete batching machine are combined with the corresponding concrete mixer, which can form a combined mixing station of different forms and specifications to meet different needs in the operation.



The operation is simple; the machine uses microcomputer control, numbers display, remote control operation, and the operation is particularly easy, just press one click.



Economic effects are excellent; each stand -alone is supported by two -way transmitting belt machines, which can achieve one ingredient machine for two mixer. At the same time, the combined mixing station formed, the cost is only 2/1-1/3 of the same specification mixing station.



Card anti -anti -card design, the pneumatic unloading is used to use the card anti -card design, the unloading is unimpeded.



Easy to move and install.

Common Faults and Solutions

1. If control is out of control or misoperation occurs during batching, turn off the power supply of the batching machine controller and restart it.

2. If the weighing is inaccurate, check whether there is support around the weighing system and whether the eyebolts are flexible, remove the supporting debris, sensor drift error, and recalibrate the weighing system.

3. If a certain material is not batched, check the electrical control circuit and eliminate the fault.

4. If the tape deviates, you need to adjust the screw of the tensioning device.

Packaging & Shipping

When shipping, we select the appropriate logistics company according to the needs of customers to ensure that the batching machine is delivered to the designated location on time. All equipment undergoes strict quality inspection before shipment and comes with detailed operation manuals and maintenance guides to ensure that customers can use the equipment smoothly and efficiently.
