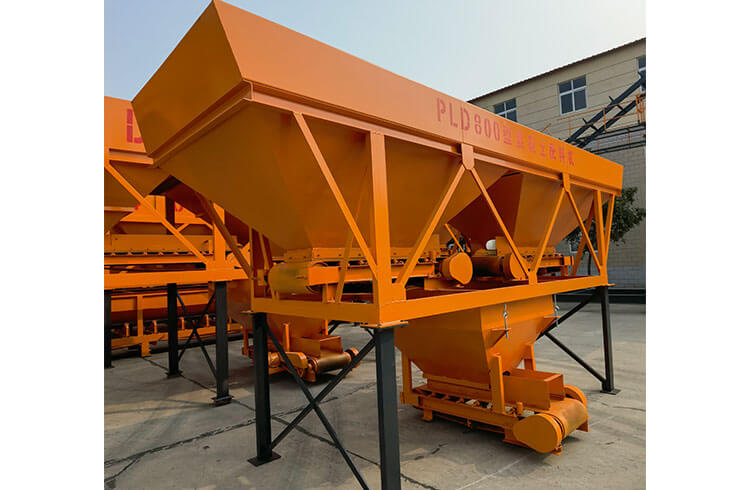

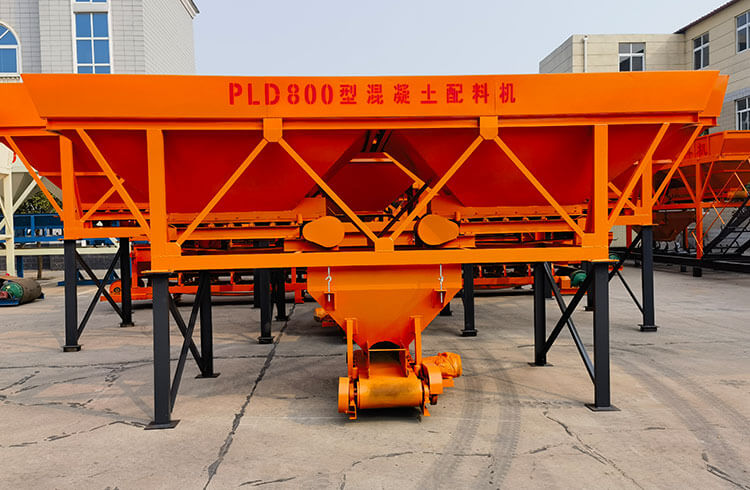

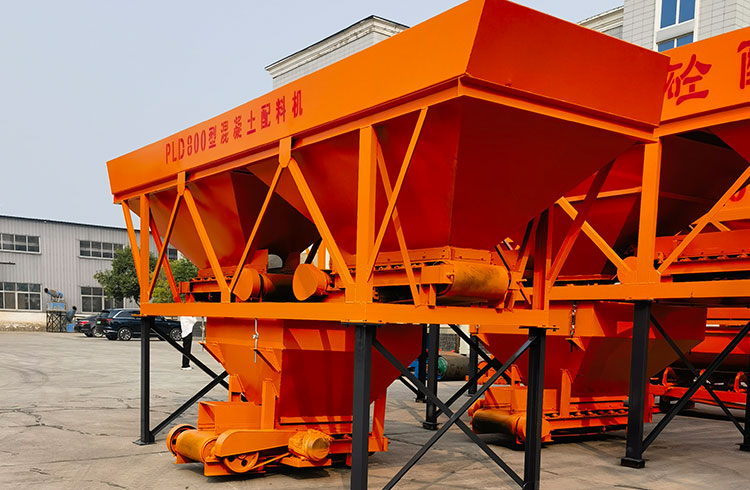

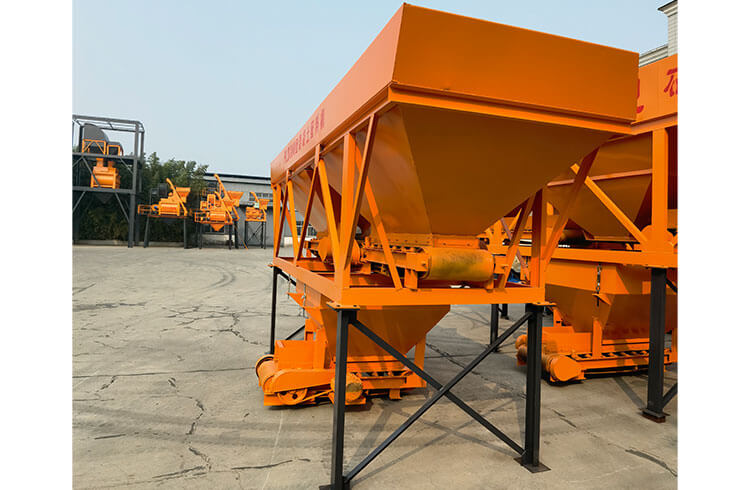

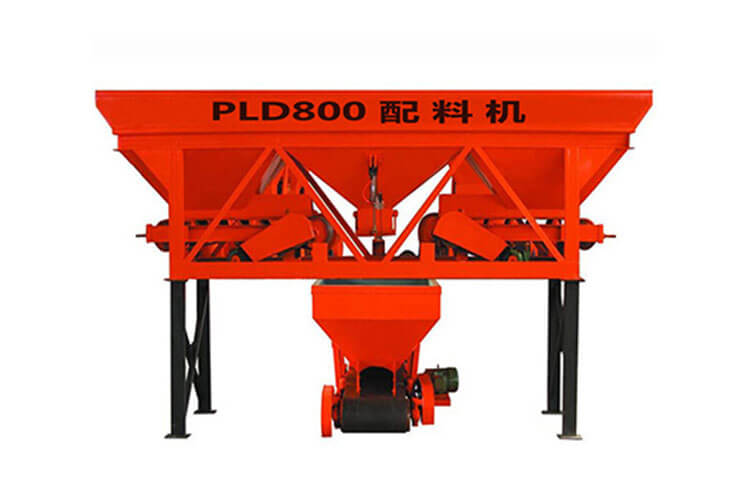

PLD800 Concrete Batching Machine

PLD800 concrete batching machine has production capacity is 48m³/h .

CHAND's PLD series concrete batching machine have different production capacity from 48m³/h to180m³/h of each time.

PLD800 concrete batching machine is an automatic batching equipment used in conjunction with a concrete mixer. It can automatically complete the batching process of 3-6 materials such as sand, stone, cement, etc. according to the concrete ratio designed by the user. It has the characteristics of high batching accuracy, fast speed, and high economic benefits.

PLD800 concrete batching machine is widely used in medium and small hydropower projects, construction sites, road construction, residential, commercial, industrial and other different scenarios, as well as concrete prefabricated component factories.

Product Parameter

Model	PLD800
Volume of weighing hopper	800L
Volume of storing hopper	2x2m³
capacity	48m³/h(Dry ingredients)
Ingredient accuracy	±1%
Maximum weigh	1500kg
Number of ingredients	2
Feeding height	2400mm
Speed of feed belt conveyor	1.2m/s
Power	3x3kw
Dimensions（LxWxH）	6000x1600x2700mm

PLD Concrete Batching Machine Category

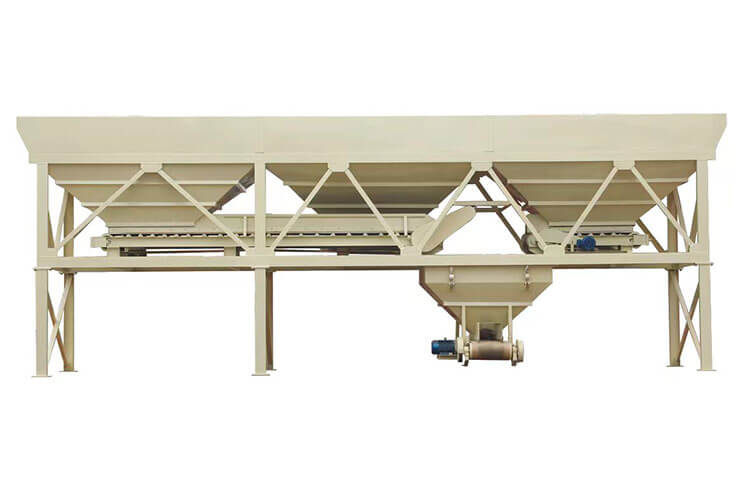

1. The number of materials according to the material level is divided into: two buckets, three buckets, four buckets;

2. Divided into the matching of the mixing machine to be divided into: PL(D)800、1200、1600、2400、3200、4800；

3. The measurement method of the ingredients is divided into: cumulative measurement of each material, separate measurement of each material;

4. According to the method of controlling materials, it is divided into: belt type, cylinder type;

PLD series concrete batching machine consists of a material supply system, weighing system and electronic control system.

Product Features



The weighing measurement is accurate; the electronic weighing system is adopted to ensure the accuracy of each weighing, which greatly improves the accuracy of the concrete ingredients.



The accuracy of the ingredients is high; the PLD800 concrete batching machine have high precision ingredients and can meet the needs of various complex concrete ingredients.



Fast speed; the equipment is fast, improve work efficiency, and reduce waiting time.



Diversified combination forms: The PLD series concrete batching machine can be combined with corresponding concrete mixers to create various forms and specifications of combined batching plants, meeting different needs during operations.



The machine uses microcomputer control, numbers display, remote control operation, and the operation is particularly easy, just press one click.



Each stand -alone is supported by two -way transmitting belt machines, which can achieve one ingredient machine for two mixer. At the same time, the combined mixing station formed, the cost is only 2/1-1/3 of the same specification mixing plant.



Easy to move and install.

Common Faults and Solutions

1. If control is out of control or misoperation occurs during batching, turn off the power supply of the batching machine controller and restart it.

2. If the weighing is inaccurate, check whether there is support around the weighing system and whether the eyebolts are flexible, remove the supporting debris, sensor drift error, and recalibrate the weighing system.

3. If a certain material is not batched, check the electrical control circuit and eliminate the fault.

4. If the tape deviates, you need to adjust the screw of the tensioning device.

Packaging & Shipping

When shipping, we select the appropriate logistics company according to the needs of customers to ensure that the batching machine is delivered to the designated location on time. All equipment undergoes strict quality inspection before shipment and comes with detailed operation manuals and maintenance guides to ensure that customers can use the equipment smoothly and efficiently.
