LSY screw conveyor is a new type of conveying equipment specially designed for horizontal or inclined conveying of granular, powdery and small block materials. and is matched with cement silo and concrete mixer to form an efficient concrete batching plant.
Working principle is to push the material along the conveying pipeline through the rotating spiral blades in the closed tube. It is widely used in various industries such as building materials, electricity, cement, mining, chemical industry, grain, coal, metallurgy, etc.

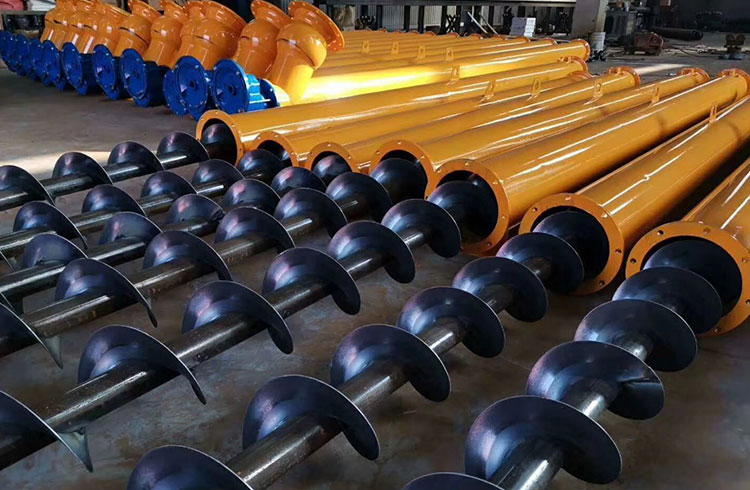

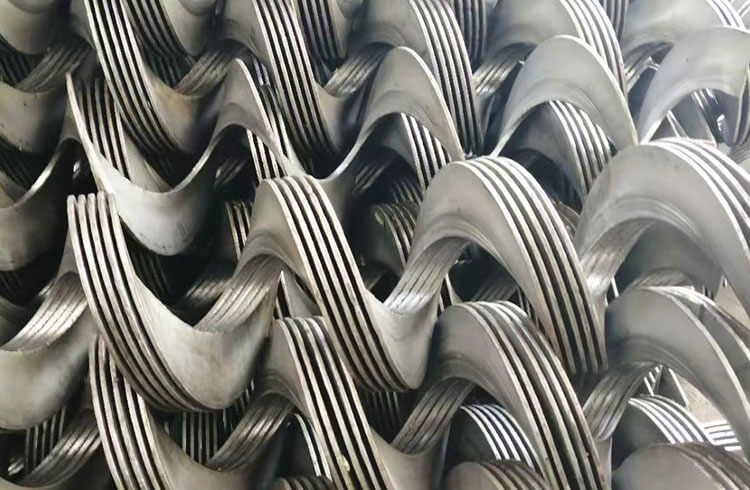

The equipment adopts pure copper national standard motor, special reducer for screw conveyor, thickened spiral mandrel and outer tube, etc.
LSY screw conveyor is suitable for conveying dry powder, granular and small block materials horizontally or at an elevation angle of less than 45°, such as cement, coal powder, fertilizer, grain, ash, sand, etc.
It is particularly suitable for cement transportation from cement silo to mixer or from cement silo to batching machine in concrete batching plant.
Technical Parameter
| Model | LSY219 | LSY273 | LSY325 | |
| spiral diameter（mm） | 219 | 273 | 325 | |
| Speed(r/min) | 200 | 175 | 175 | |
| Amount of cement delivered(t/h) | 20-28 | 30-38 | 40-48 | |
| Length(m) | 4-15 | 6-15 | 6-15 | |
| Working angle(°) | 0-45 | 0-45 | 0-45 | |
| Powder specific gravity | ＜1.35 | ＜1.35 | ＜1.35 | |
| Electric motor | Model | Y160M-4 | Y180M-4 | Y180M-4 |
| Motor power（kw）L＞7~maximum | 5.5-15 | 11-18.5 | 15-22 | |
Product Structural Diagram
Product Features

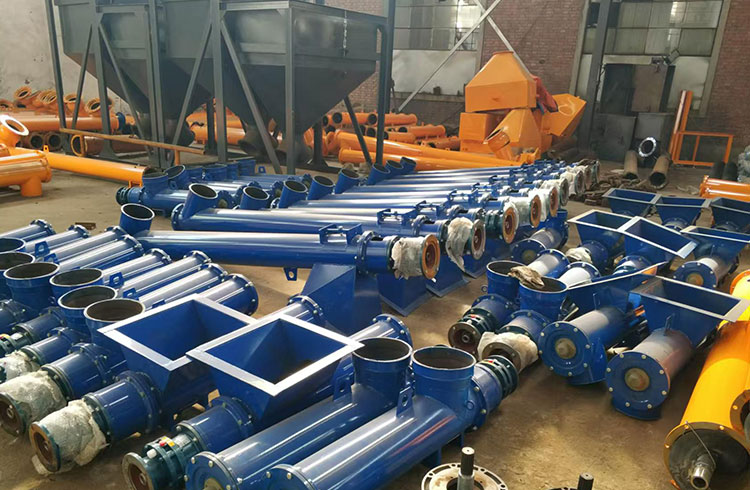

Packaging & Shipping
Before delivery, we will assemble and debug the equipment in the factory, and the parts will be installed on the machine to help customers reduce installation troubles and ensure that the equipment is delivered to customers intact.
