Mobile Concrete Batching Plant

Product Introduction

  • Model: YHZS60, YHZS90
  • Theoretical capacity(m³/h): 60, 90
  • Discharge height(m):  3.8, 4
  • Total power (kW):  60, 85

Application:Mobile concrete batching plant is widely used in infrastructure construction such as bridges, ports, hydropower, and roads, as well as various building projects and precast component factories.Additionally, it is particularly suitable for temporary construction projects, areas with incomplete infrastructure, and small-scale concrete demand projects.

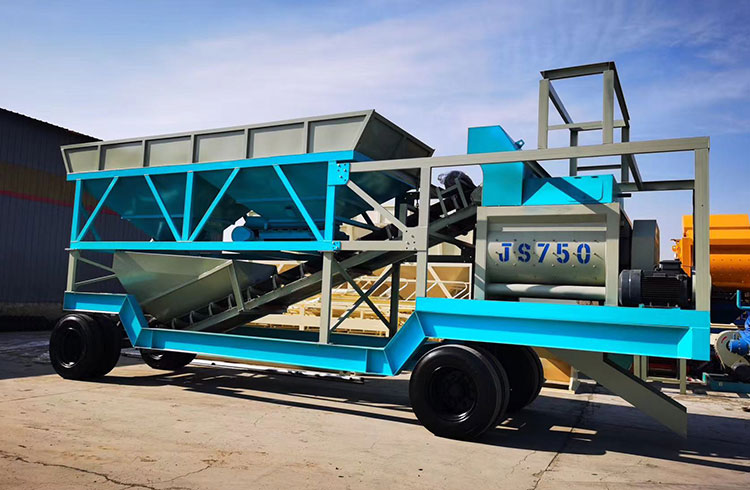

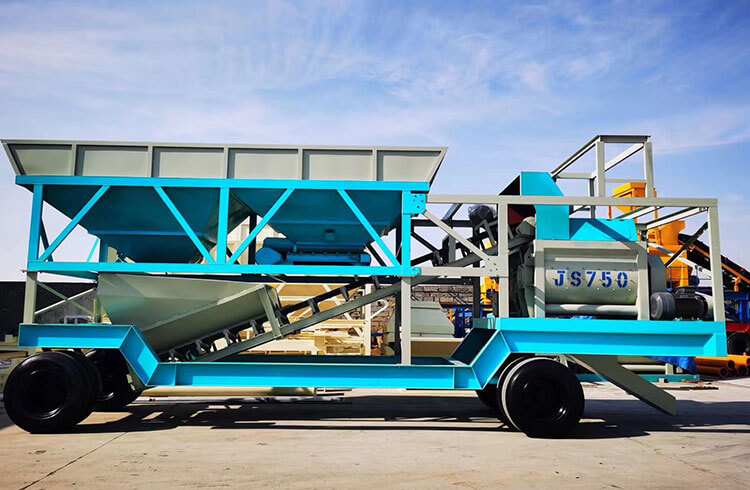

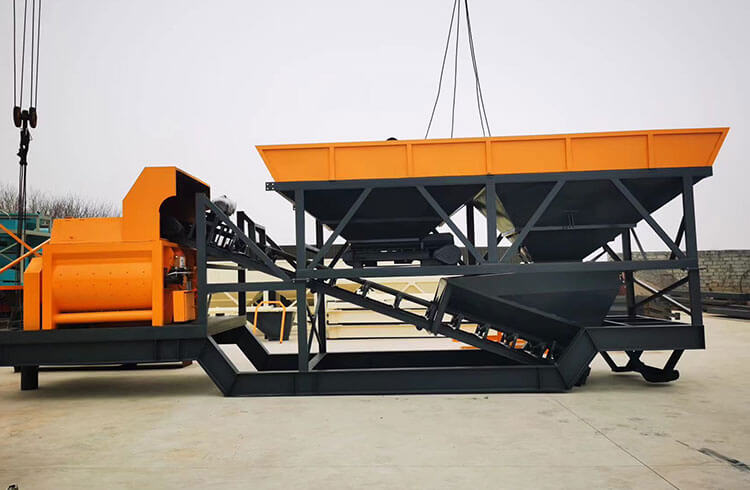

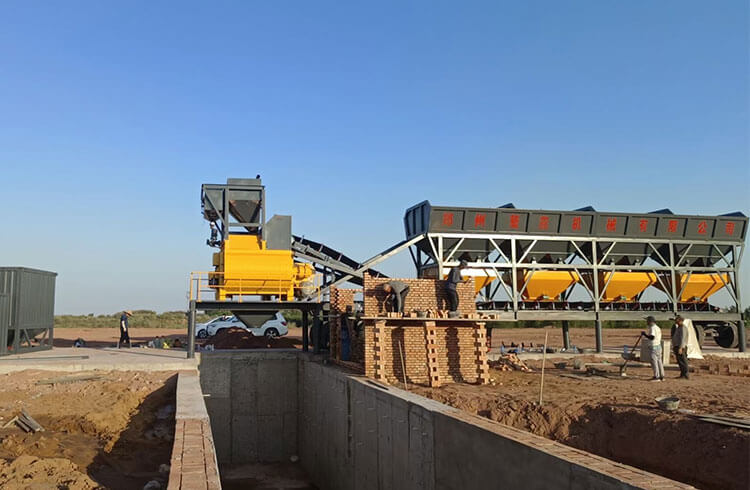

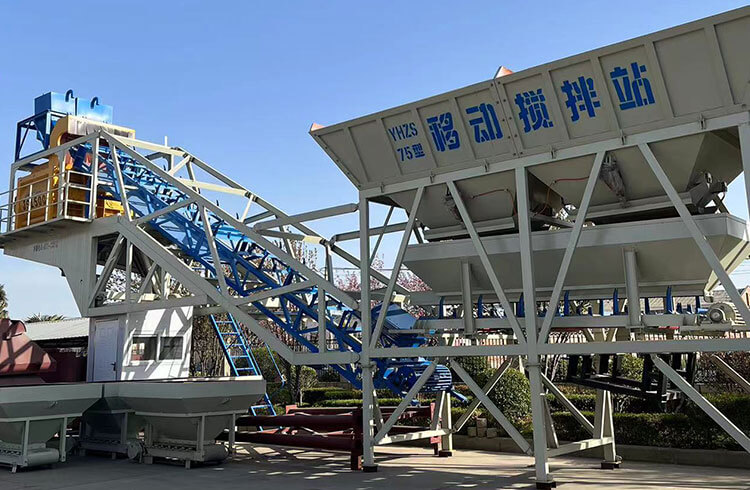

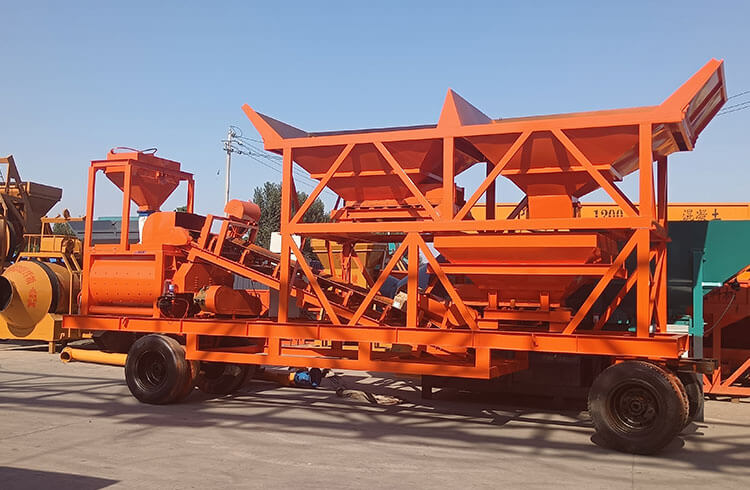

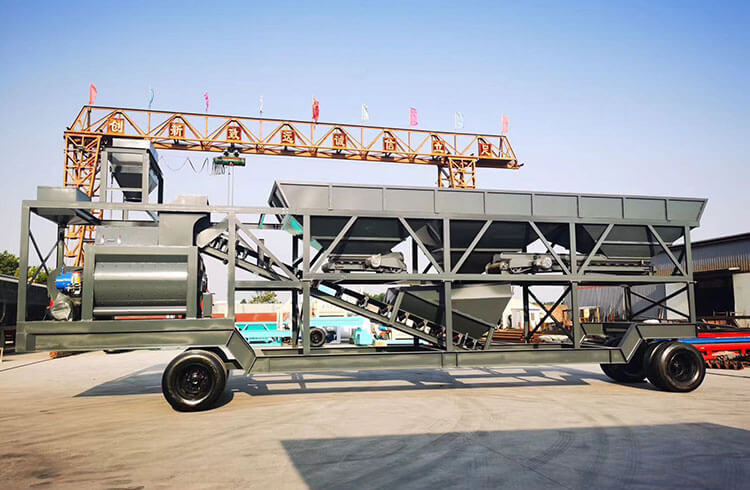

Mobile concrete batching plant is a kind of efficient and flexible concrete production equipment.

CHAND's YHZS mobile concrete mixing plant is one of the best-selling plant,CHAND has two models: YHZS60 and YHZS90.

It solves the problems of traditional mixing plants, such as cumbersome assembly and dismantling, time-consuming, labor-intensive and costly.

Mobile concrete batching plant consists of concrete mixer, batching system, control system, conveying system, mobile chassis, etc.Modular structure and easy to install and disassemble。

It is widely used in infrastructure construction such as bridges, ports, hydropower, and roads, as well as various building projects and precast component factories.Additionally, it is particularly suitable for temporary construction projects, areas with incomplete infrastructure, and small-scale concrete demand projects.

CHAND can provide a wide range of concrete batching plants which have different capacities and specifications.We can customize according to customer needs.

Technical Parameter

Mobile concrete batching plant ModelYHZS60YHZS90
Theoretical capacity(m³/h)6090
Discharge height(m)3.84
Operating cycle time(s)6060
Dimensions(m)(Lx W x H)25x7x1325x7x15
Total power(kw)6085
 MixerMaximum diameter of aggregate≤50≤60
Motor power(kw)18.5x230x2
 Batching machineAggregate type34
Aggregate silo capacity(m³)710
Penumatic SystemAir compressor power(kw)5.57.5

Product Features

High efficiency; using twin-shaft forced mixer, it has strong continuous working capacity, short mixing time, and uniform and fast mixing.
Simple operation; fully automated control system, dynamic panel display, the operation status of each component is clear at a glance, and it is easy for operators to get started.
Quick installation; small footprint, easy to move, and convenient for rapid deployment and use at different construction sites.
Mobile design, can be quickly transferred to different construction sites, strong adaptability.
Mobile concrete batching plants do not require foundations, reducing operating costs.
Adopt advanced dust removal and noise control technology to reduce environmental impact.

Packaging & Shipping

Before delivery, we will assemble and debug the equipment in the factory, and the parts will be installed on the machine to help customers reduce installation troubles and ensure that the equipment is delivered to customers intact.
